While connecting your Dulcet ceiling speaker with Dulcet amplifier, it is important to know the fitment process for the same. The guide has been provided below to connect different numbers of speakers to your Dulcet amplifier. You can use it according to your needs.

Important Points before Fitment :

Maximum Number of Dulcet Ceiling Speakers you can connect with Dulcet Amplifier

You can connect maximum 12 Dulcet Ceiling speaker with Dulcet amplifier.

Number of Channels in Dulcet Amplifier

There are two channels in your Dulcet amplifier (Left Channel & Right Channel) and each channel has two slots (Slot A & Slot B) containing Positive & Negative terminal.

Now! Learn to connect Dulcet Ceiling Speaker with Dulcet Amplifier

The fitment process for Dulcet ceiling speakers and Dulcet amplifier depends on the number of speakers you want to connect.

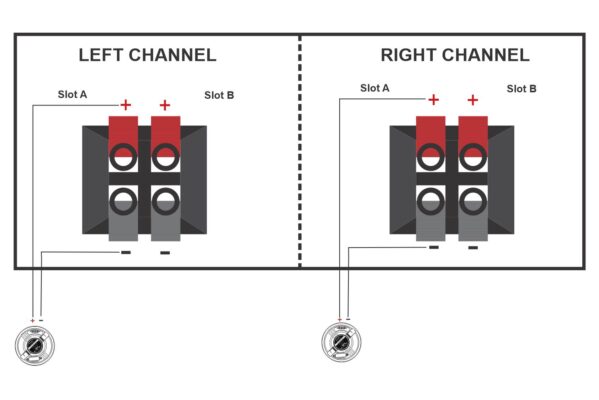

Connect 2 Dulcet Ceiling Speakers with Dulcet Amplifier

• Slot A of the amplifier’s left channel: 1st Speaker
• Slot B of the amplifier’s left channel: None
• Slot A of the amplifier’s right channel: 2nd Speaker
• Slot B of the amplifier’s right channel: None

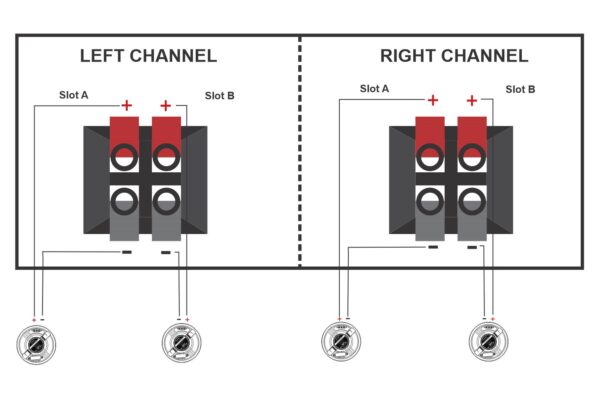

Connect 4 Dulcet Ceiling Speakers with Dulcet Amplifier

• Slot A of the amplifier’s left channel: 1st Speaker
• Slot B of the amplifier’s left channel: 2nd Speaker
• Slot A of the amplifier’s right channel: 3rd Speaker
• Slot B of the amplifier’s right channel: 4th Speaker

Connect 6 Dulcet Ceiling Speakers with Dulcet Amplifier

• Slot A of the amplifier’s left channel: 1st & 2nd Speaker in Series
• Slot B of the amplifier’s left channel: 3rd Speaker
• Slot A of the amplifier’s right channel: 4th & 5th Speaker in Series
• Slot B of the amplifier’s right channel: 6th Speaker

Connect 8 Dulcet Ceiling Speakers with Dulcet Amplifier

• Slot A of the amplifier’s left channel: 1st & 2nd Speaker in Series
• Slot B of the amplifier’s left channel: 3rd & 4th Speaker in Series
• Slot A of the amplifier’s right channel: 5th & 6th Speaker in Series
• Slot B of the amplifier’s right channel: 7th & 8th Speaker in Series

Connect 10 Dulcet Ceiling Speakers with Dulcet Amplifier

• Slot A of the amplifier’s left channel: 1st, 2nd & 3rd Speaker in Series
• Slot B of the amplifier’s left channel: 4th & 5th Speaker in Series
• Slot A of the amplifier’s right channel: 6th, 7th & 8th Speaker in Series
• Slot B of the amplifier’s right channel: 9th & 10th Speaker in Series

Connect 12 Dulcet Ceiling Speakers with Dulcet Amplifier

• Slot A of the amplifier’s left channel: 1st, 2nd & 3rd Speaker in Series
• Slot B of the amplifier’s left channel: 4th, 5th & 6th Speaker in Series
• Slot A of the amplifier’s right channel: 7th, 8th & 9th Speaker in Series
• Slot B of the amplifier’s right channel: 10th, 11th & 12th Speaker in Series
